Fig. 5 | BMC Developmental Biology

Fig. 5

From: Monocyte Chemoattractant Protein-1 stimulates the differentiation of rat stem and progenitor Leydig cells during regeneration

Fig. 5

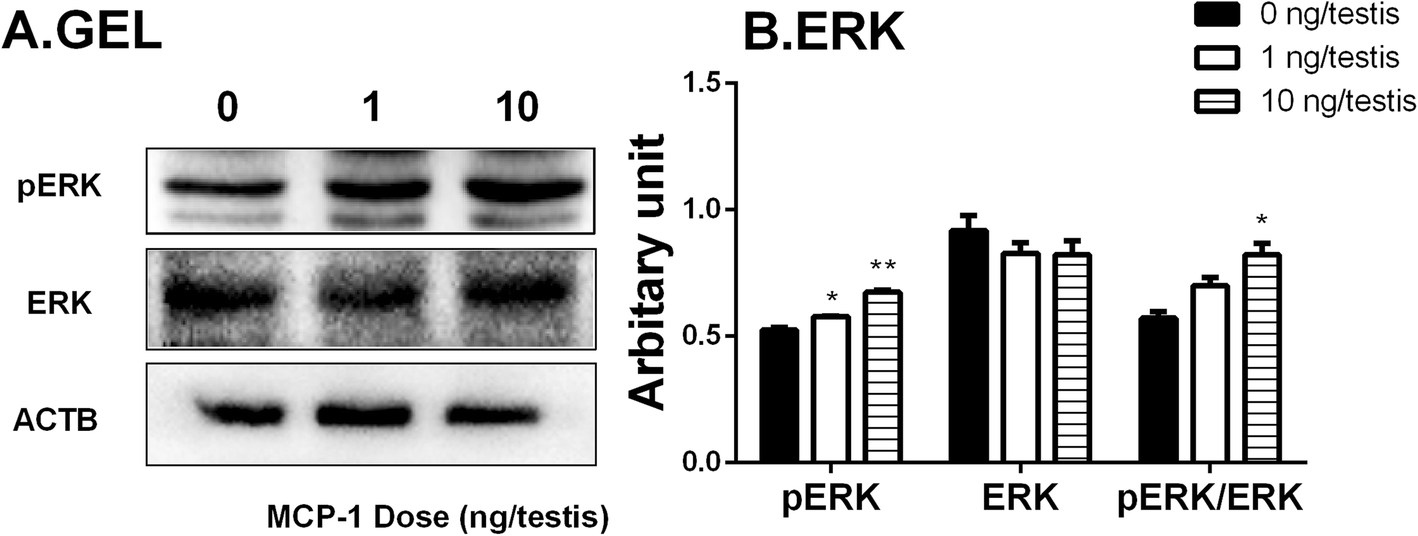

Effects of MCP-1 on EKR1/2 and its phosphorylation in vivo. Left panel: gel; Right panel: quantitative data. The protein levels of phosphorylated ERK1/2 (pERK), ERK1/2 (ERK), and the pERK/ERK ratio in the testes from rats treated with 0, 1, and 10 ng/testis MCP-1 from the 14th day to 28th day were analyzed by Western blot. Three testes each group were randomly selected. Their levels were adjusted to β-actin (ACTB). Mean ± SEM, n = 3, *P < 0.05, **P < 0.01 designate significant difference when compared to the control
