TBX3 over-expression causes mammary gland hyperplasia and increases mammary stem-like cells in an inducible transgenic mouse model
BMC Developmental Biology volume 11, Article number: 65 (2011)
The T-box transcription factor TBX3 is necessary for early embryonic development and for the normal development of the mammary gland. Homozygous mutations, in mice, are embryonic lethal while heterozygous mutations result in perturbed mammary gland development. In humans, mutations that result in the haploinsufficiency of TBX3 causes Ulnar Mammary Syndrome (UMS) characterized by mammary gland hypoplasia as well as other congenital defects. In addition to its role in mammary gland development, various studies have also supported a role for Tbx3 in breast cancer development. TBX3 is over-expressed in various breast cancer cell lines as well as cancer tissue and has been found to contribute to breast cancer cell migration. Previous studies have suggested that TBX3 contributes to cancer development by its ability to bypass senescence by repressing the expression of p14ARF-tumor suppressor. Although many studies have shown that a dysregulation of TBX3 expression may contribute to cancer progression, no direct evidence shows TBX3 causes breast cancer.
In this study, we created doxycycline inducible double transgenic mice (MMTV-rtTA;tet-myc-TBX3-IRES-Luciferase) to test whether TBX3 over-expression can induce tumor formation within the mammary gland. Although over-expression of TBX3, alone, did not induce tumor formation it did promote accelerated mammary gland development by increasing mammary epithelial cell proliferation. We also show that TBX3 directly binds to and represses NFκBIB, an inhibitor of the NF-κB pathway known to play a role in regulating cell proliferation. Lastly, we also show that the over-expression of TBX3 is associated with an increase in mammary stem-like cells.
Overall, our data suggests that over-expression of TBX3 may contribute to breast cancer development by promoting accelerated mammary gland development through the inhibition of the NF-κB pathway and stimulation of both mammary epithelial cell and stem-like cell proliferation.
TBX3 is a member of the T-box family of genes. T-box genes are expressed during embryonic development and have been found to regulate cell specification and organogenesis [1, 2]. They are also well-known for the roles they play in many human developmental syndromes [3–6]. Tbx3 is known to function as a transcriptional repressor and is required for embryonic development and for the normal development of the mammary gland [7–11]. In mice models, homozygous mutations in which the function of Tbx3 is completely lost are embryonic lethal while haploinsufficiency of Tbx3 results in significantly reduced branching of ductal trees in adult animals . In humans, mutations that result in the haploinsufficiency and loss of function of TBX3 ultimately cause Ulnar Mammary Syndrome (UMS) [3, 13, 14]. UMS is an autosomal dominant disorder characterized by mammary gland hypoplasia and affects limb, apocrine-gland, teeth, hair, and genital development. Besides Tbx3's role in early mammary gland development, various studies have also supported a role for Tbx3 in breast cancer development. The TBX3 gene is located at the 12q24 region which is frequently amplified in a variety of malignancies including breast cancer [7, 15]. Moreover, TBX3 is over-expressed in various breast cancer cell lines as well as primary breast cancer tissues [16, 17]. TBX3 is mislocalized to the cytoplasm in primary breast cancer tissues and serum TBX3 protein levels were also found to be abnormally high in early stage breast cancer patients [17, 18]. More recently, it has been shown that PMA-induced up-regulation of TBX3 contributes to breast cancer cell migration .
TBX3 has been shown to repress the expression of the tumor suppression gene p14ARF [8, 9, 11, 20] and the murine homologue p19ARF . The p14/19(ARF)-Mdm2-p53 pathway plays an important role in regulating cell senescence and protects cells against oncogenic transformation which leads to tumor formation [8, 9, 11, 20]. TBX3 over-expression has been shown to immortalize mouse embryonic fibroblast cells by suppressing p19ARF [8, 16, 21]. We have previously shown that over-expression of TBX3 represses human p14ARF by recruiting HDAC 1, 2, 3 and 5 in the MCF7 breast cancer cell line . In order to identify other targets of TBX3, we used chromatin immunoprecipitation-guided ligation and selection (ChIP-GLAS) promoter array. Our results showed that 430 gene promoters are bound by TBX3 in the MCF7 breast cancer cell line (unpublished data). One of the identified genes, NFκBIB, is an inhibitor of NF-κB. Studies have shown that NF-κB associated pathways play an important role in cell proliferation, differentiation and apoptosis . Specifically, NFκBIB inhibits NF-κB by sequestering it in the cytoplasm. Activation of NF-κB occurs upon ubiquitin mediated degradation of NFκBIB proteins via serine phosphorylation by IκB kinase (IKK). Studies have shown that inhibition of NF-κB activation in mouse mammary glands lead to defective proliferation in lobuloalveolar structures during pregnancy , whereas elevated NF-κB activity causes mammary hyperplasia in vivo . Furthermore, aberrant activation of NF-κB is related to breast cancer progression, including tumor initiation, proliferation, chemoresistance and tumor metastasis . Taken together, these studies suggest that a dysregulation of TBX3 expression may contribute to breast cancer development.
Further supporting the notion that Tbx3 plays a role in cancer development, recent studies have shown that increased levels of TBX3 enhanced melanoma invasiveness by repressing E-cadherin expression . Recent studies have shown that TBX3, a downstream target of Wnt/β-catenin in liver cancer, has also been found to be over-expressed in human hepatocellular carcinoma and heptoblastoma . Knockdown of Tbx3 in rat bladder carcinoma cell lines resulted in a lower growth rate and more apoptotic cells than controls, suggesting that Tbx3 promotes cell proliferation and is a negative regulator of apoptosis . Although many studies have shown that a dysregulation of TBX3 expression may contribute to cancer progression, no direct evidence shows that TBX3 causes breast cancer.
Identifying whether TBX3 directly promotes breast cancer development and the mechanism by which it does this is important for understanding mammary development as well as the perturbations that may lead to breast cancer. In the present study, we have demonstrated that over-expression of TBX3 in our doxycycline inducible mouse model promotes accelerated mammary gland development and hyperplasia by promoting mammary epithelium cell proliferation. Moreover, we have shown that NFκBIB was dramatically down-regulated in the mammary glands of doxycycline induced double transgenic mice. Although over-expression of TBX3, alone, did not cause tumor formation within the mammary gland, our data suggests that the over-expression of TBX3 may contribute to breast cancer formation through the inhibition of the NF-κB pathway and stimulation of both mammary epithelial cell and stem-like cell proliferation.

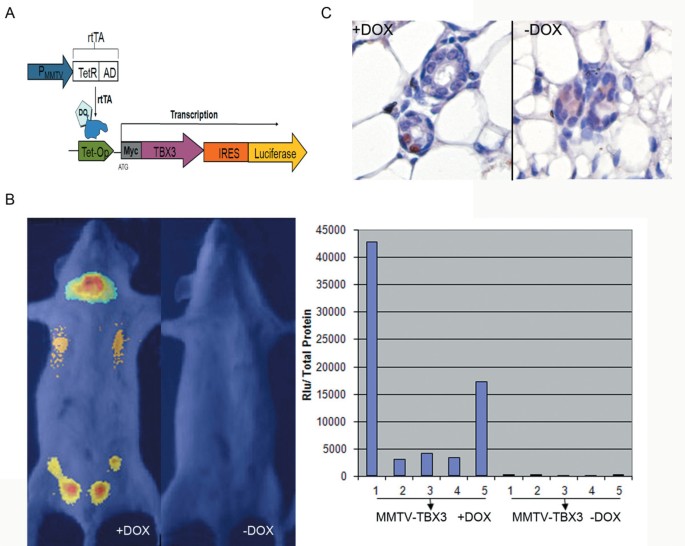

TBX3 over-expression is induced in MMTV-rtTA; tet-myc-TBX3 mammary glands by doxycycline administration
To construct a doxycycline inducible myc-TBX3 transgene cassette (TMILA-myc-TBX3-IRES-Luciferase), myc-TBX3 cDNA was subcloned downstream of tet operator elements (TetO) (Figure 1A). In our transgene expression cassette, the expression of the luciferase reporter gene is regulated by the same promoter as our myc-TBX3 transgene. Thus, upon induction with doxycycline, translation of the luciferase reporter gene by its own internal ribosome entry site (IRES) can be used as a marker for myc-TBX3 overexpression (Figure 1A). In order to express myc-TBX3 specifically in the mammary glands of mice, tet-myc-TBX3 mice were mated with MMTV-rtTA mice. Transgene expression was induced in double transgenic mice by adding 2mg/ml doxycycline to the drinking water. To verify that the induction of TBX3 expression within the mammary glands of mice occurred only upon the addition of doxycycline, luciferase activity was monitored by imaging the mammary glands of both doxycycline induced and un-induced double transgenic mice in vivo, using an ICCD camera. Prior to in vivo imaging, mice were sedated by intraperitoneal injection of Xylazine and Ketamine. After 5 minutes, an aqueous solution of luciferin was injected into the peritoneal cavity to detect luciferase activity and TBX3 transgene over-expression. The in vivo image of the doxycycline induced double transgenic mouse detected a bioluminescent signal 4-200 folds above background within all 5 pairs of mammary glands. The bright bioluminescent signal in the cervical midline of the doxycycline induced double transgenic mouse represents the first pair of mammary glands as well as leaky expression of the MMTV promoter within the salivary gland, which is frequently seen in other MMTV models (Figure 1B). No signal was detected in the age-matched un-induced double transgenic littermate control (Figure 1B, left panel). To more directly measure the luciferase activity within each mammary gland a luciferase assay was performed using tissue lysates from each mammary gland (1-5) of a single doxycycline induced double transgenic mouse (n = 1). Consistent with the in vivo imaging, all five mammary glands from the doxycycline induced double transgenic mice had high luciferase readings while the un-induced double transgenic littermates showed only baseline readings (Figure 1B, right panel). Direct TBX3 over-expression within the mammary gland was also detected by immunohistochemistry with an anti-TBX3 antibody. TBX3 over-expression was detected only in the induced double transgenic mouse mammary gland (Figure 1C). Endogenous TBX3 expression was not detected (Figure 1C, right panel). Overall, these results show that TBX3 over-expression is specifically induced within all 5 mammary glands of our double transgenic mice upon administration of doxycycline.
Over-expression of TBX3 promotes accelerated mammary gland development by increasing cell proliferation
In mice, the mammary gland development begins shortly after mid-gestation. Five pairs of mammary placodes form at the site of the future nipples . These placodes invaginate and form buds within the mammary fat pad that contain few branches . By birth a simple mammary ductal tree is formed that occupies a small portion of the fat pad . After birth, growth of the mammary gland is relatively quiescent until puberty . At puberty, club-shaped structures called the terminal end buds (TEBs) form at the tips of the ductal tree. During this period, cell proliferation in TEBs results in ductal elongation through the mammary fat pad. TEBs not only elongate through the fat pad, but also bifurcate to form new primary ducts while secondary side-branches sprout along the extending ducts . The outgrowth of side branches is controlled by several hormones and signaling pathways . At the end of puberty, approximately 10-12 weeks of age, TEBs reach the edge of the fat pad and disappear [31, 32]. In order to determine the effect of TBX3 over-expression on the overall development of the mammary gland, we harvested the 1st and 4th mammary glands from 3 doxycycline induced double transgenic mice and from another 3 of the un-induced double transgenic littermate controls at four specific time points; 7-weeks, 10-weeks, 12-weeks of age and 10.5 days postcoitus (dpc). Mammary glands harvested at 7-weeks, 10-weeks and 12-weeks were from nulliparous mice, while those harvested at 10.5 dpc were from uniparous pregnant mice. Whole mount analysis of the 4th mammary gland revealed that at 7-weeks and 10-weeks of age, TEBs in the control mice had not reached the edge of the fat pad, whereas the TEBs in doxycycline induced double transgenic mice were observed at the edge of the fat pad or had disappeared (Figure 2A, arrows indicate TEBs), suggesting that over-expression of TBX3 promotes accelerated ductal elongation. Hematoxylin and eosin staining of both the 1st and 4th mammary glands of the doxycycline induced double transgenic mice displayed increased primary and secondary side branching at all time points when compared to their un-induced double transgenic littermate controls (Figure 2A and 2B). We also observed an increase in tertiary side branching although this has been known to occur in response to estrous cycle . In addition, pregnant doxycycline induced double transgenic mice at 10.5 dpc also displayed more alveoli tissue than the un-induced double transgenic controls (Figure 2A and 2B). The samples used for whole mount analysis were from two independent founder lines and the results were consistent between these two lines.
Several in vitro studies have suggested that the over-expression of Tbx3/TBX3 leads to the bypass of senescence and promotes cell proliferation [8, 16, 21, 33, 34]. To determine whether the observed accelerated development of the mammary glands in TBX3 over-expressing mice is due to an increase in cell proliferation, we performed an EdU cell proliferation assay. The 4th mammary glands from pregnant doxycycline induced and un-induced double transgenic mice were harvested at 10.5 dpc and used for the assay. The proportion of nucleated cells incorporating EdU was quantified by fluorescence microscopy (Figure 3A) and normalized to the total cell number in each 20× field. After quantification, we found that the percentage of Edu positive cells is significantly (p < 000.1) higher in mammary glands over-expressing TBX3, than their un-induced controls (Figure 3B). This result suggests that over-expression of TBX3 may promote accelerated mammary gland development by promoting mammary epithelial cell proliferation in vivo.
Since highly proliferative tissues are associated with carcinogenesis, we next analysed the histology of the 3rd mammary glands of 15 week old mice to identify if any unusual morphological changes have occurred. Hematoxylin and eosin staining of the doxycycline induced double transgenic mouse mammary gland showed mild focal hyperplasia (Figure 2B, arrows) and discontinued ductal epithelium (Figure 2B, arrowheads) when compared to the littermate control. By the age of 20 months, none of the doxycycline induced double transgenic mice had developed tumors.
TBX3 represses NFκBIB
In our double transgenic mouse model in which TBX3 was over-expressed, we observed accelerated development of the mammary gland from 7 weeks of age through pregnancy; specifically enhanced branching and ductal elongation. Moreover mice that over-expressed TBX3 also had a significantly higher percentage of proliferating mammary epithelial cells than controls. Together these data suggest that TBX3 may be regulating genes that play a role in cell proliferation. Identifying the mechanism by which TBX3 promotes accelerated mammary gland development will help to further elucidate its possible role in breast cancer development. Dysregulation of the NF-κB associated pathways have been shown to play a role in breast cancer development . Moreover, it has been shown that elevated NF-κB activity causes mammary hyperplasia in vivo . Due to this observed phenotype and our previous unpublished data in which TBX3 binds to the promoter of NFκBIB in MCF7 cells, we investigated the role TBX3 may play in regulating the NFκB pathway. To verify that TBX3 does indeed regulate the NFκBIB promoter, we performed a luciferase assay. Briefly, COS-7 cells were transfected with either pcDNA3.1-Myc (control) or pcDNA3.1-Myc-TBX3 expression vector together with the pGL3-NFκBIB luciferase reporter construct and a β-galactosidase control plasmid (pcDNA3.1/His/LacZ) using Lipofectamine 2000. Forty-eight hours later, cell lysates were harvested and used to perform the luciferase assay. β-galactosidase enzyme activity was measured and used to normalize luciferase activity. The luciferase assay revealed that the activity of the NFκBIB promoter is significantly repressed (p < 0.0001) when TBX3 is over-expressed in COS-7 cells (Figure 4A). To determine whether the Nfκbib protein was down-regulated upon over-expression of TBX3 within the mammary gland, immunohistochemistry was performed on the mammary glands of doxycycline induced and un-induced double transgenic mice at 10 weeks of age. Staining revealed the Nfκbib expression was down-regulated in the doxycycline induced double transgenic mouse when compared to its un-induced double transgenic littermate control (Figure 4B). These data suggest that over-expression of TBX3 may promote cell proliferation within the mammary gland by repressing the expression of Nfκbib.

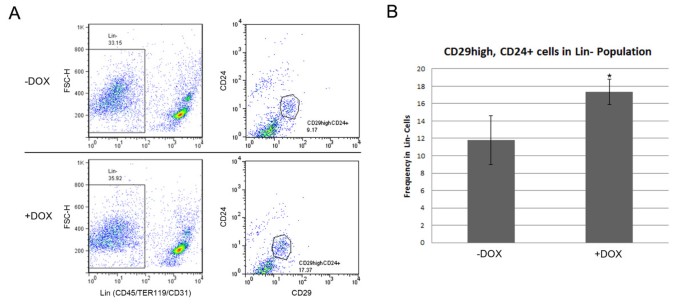

Over-expression of TBX3 is associated with an increase in mammary stem-like cells
Another mechanism by which TBX3 over-expression may promote accelerated mammary gland development is through the proliferation of mammary stem cells. Expression of Tbx3 has been shown to promote the proliferation of breast cancer stem cells in vitro , suggesting that Tbx3 may also promote mammary stem cell proliferation. A study showed that a single Lin-CD24+CD29high cell is able to generate a functional mammary gland, providing strong evidence that these cells are mammary stem cells . Thus, to isolate and analyze the mammary stem-like cell population we first subtracted the mammary Lin+ (CD31+, CD45+ and TER119+) cells. CD31 is considered as an endothelial cell marker, and CD45 and TER119 are considered as hematopoietic cell markers . Therefore, Lin+ (CD31+, CD45+ and TER119+) cells are considered a terminally differentiated cell population. In contrast, CD29 is a skin stem cell marker  and CD24 is found on neuronal stem cells , therefore CD29+ and CD24+ cells are considered mammary stem-like cells . To determine whether over-expression of TBX3 promotes the proliferation of mammary stem-like cells, we dissected mammary glands from two mice at 12 weeks of age from the doxycycline induced double transgenic group and their un-induced double transgenic littermates and isolated the mammary stem-like cells using the previously mentioned cell markers. The gating strategy for Lin- cells and CD24+ CD29high cells is shown in Figure 5A. FACs analysis revealed that over-expression of TBX3 did not affect the overall frequency of Lin- cells in the mammary glands of doxycycline induced and un-induced mice, 35.92% and 33.15%, respectively (Figure 5A). However, within the Lin- population, there was a significant increase in the frequency of CD24+CD29high cells in the doxycycline induced double transgenic mice versus un-induced control; 17.37% and 9.17% respectively (p < 0.05) (Figure 5A and 5B). The average and standard deviations from both mice in each group are presented in Figure 5B. These results suggest that over-expression of TBX3 may promote proliferation of mammary stem-like cells.
The TBX3 T-box transcription factor plays an important role in early mammary development [3, 7, 12, 40]. Mutations that cause haploinsufficiency of Tbx3 result in mammary gland hypoplasia in both mice and human [3, 12, 13]. On the other hand, Tbx3 is over-expressed in a variety of cancers, including breast cancer [16, 18, 26, 28]. Although Tbx3 over-expression has been associated with oncogenesis by its known ability to inhibit P14ARF expression and bypass senescence or by contributing to breast cancer cell migration [11, 17, 19], no direct evidence has been shown to suggest that over-expression of TBX3, alone, can induce tumor formation within the mammary gland. In this study, we over-expressed TBX3 within the mammary glands of mice, using a tissue-specific, doxycycline inducible transgenic system. Transgenic mouse models using constitutive promoters have provided information about specific genes and breast cancer development, particularly oncogene function [41, 42]. However, there are significant limitations to these systems due to the lack of control of transgene expression. The ability to control TBX3 expression is critical since homozygous Tbx3 knockout is embryonic lethal and constitutive over-expression is potentially toxic [12, 43]. We implemented a Tet-On system in our transgenic mouse model so that TBX3 transgene expression is inducible in a time and tissue-specific manner , enabling us to test possible TBX3 function in tumorigenesis in the mammary glands. An advantage of our mouse model is the ability to use luciferase expression as an indication of TBX3 transgene expression (Figure 1A). In this way, we are able to monitor TBX3 expression without sacrificing the animal. Using in vivo imaging as well as a luciferase assay, we were able to show that transgene expression is tightly controlled by doxycycline administration (Figure 1B). Our results show that this system is reliable and transgene expression could be induced in all five pairs of mammary glands.
Previous studies have shown that the five pairs of mouse mammary glands are differentially regulated by Tbx3 during early development. For example, in Tbx3 knockout studies, homozygous mutations resulted in the absence of mammary placodes, except for an occasional induction of the second pair of mammary placodes . Heterozygous mutations of Tbx3 caused decreased branching morphogenesis in the first three pairs of mammary glands, but had no significant impact on the fourth and fifth pairs of mammary glands . In 18.5 day old Tbx3 heterozygous embryos, 75% of the first pair of mammary glands was missing with no nipple or ductal tree formation while the second pair of mammary glands was affected to a lesser extent . Although these studies suggest that Tbx3 regulates murine mammary glands differently, we found that over-expression of TBX3 promotes accelerated mammary gland development in both the first and fourth mammary glands (Figure 2A and 2B) as well as the second, third and fifth mammary glands (data not shown).
Research has solidified a role for Tbx3 in the early development of the mammary gland. Tbx3 homozygous mutant mice results in mammary gland hypoplasia while heterozygous mutations of Tbx3 caused decreased branching morphogenesis in mammary glands [12, 21]. Our research complements these previous studies showing that TBX3 over-expression within the mammary glands causes hyperplasia, promoting increased secondary and tertiary branching as well as accelerated ductal elongation. It is also important to discuss that we have over-expressed human TBX3 within the mammary glands of mice. It has been shown that human TBX3 and mouse Tbx3 are 97% homologous at the protein level. Our group and others have demonstrated that human TBX3 is functional in mouse cells [9, 12, 16, 20]. Furthermore, aTbx3 knockout mouse model was able to recapitulate the phenotype seen in humans with Ulnar Mammary Syndrome (UMS). In a study performed by Papaioannou et al., a mutation in the mouse Tbx3 gene that closely corresponds to truncation mutations seen in some individuals with UMS resulted in a deficiency in mammary placode induction and the absence or reduction of mammary buds in mutant embryos, corresponding to the mammary gland hypoplasia seen in patients with UMS. Moreover, the deficiency in the development of limb elements in individuals with UMS was also reflected in limb abnormalities in the Tbx3 mutant mice. Mutant mice had deformities in the forelimb digits, foot and fibula resulting from a failure in the development of posterior limb elements. This study exemplifies that the Tbx3 protein plays a similar role in the development of the mammary glands in both human and mice. The mechanism by which TBX3 over-expression promotes hyperplasia in mammary glands needs to be elucidated. Using an Edu cell proliferation assay, we showed that over-expression of TBX3 resulted in a dramatic increase in cell proliferation within the mammary glands of pregnant doxycycline induced double transgenic mice at 10.5 dpc (Figure 3). Although cell proliferation was not directly quantified for the other developmental time points (i.e. 7-weeks, 10-weeks, and 12-weeks), the similarity in the observed accelerated mammary gland development suggests that the increase in cell proliferation at 10.5 dpc may also play a role in causing the accelerated branching and elongation of ducts during the other phases of mammary gland growth. A study has shown that mammary epithelia lacking the gene encoding NFκBIA contained increased NFkB activity as well as increased ductal branching and widespread intraductal hyperplasia , similar to results seen in our study. Furthermore, aberrant activation of NF-κB increased cell proliferation and breast cancer progression . In this study, we found that TBX3 inhibits the promoter activity of NFκBIB in vitro (Figure 4A). Upon further analysis, in vivo, we observed that Nfκbib expression was dramatically reduced in doxycycline induced double transgenic mice as compared to its un-induced double transgenic littermate controls (Figure 4B). Taken together, our results suggest a mechanism by which TBX3 over-expression represses NFKBIB/Nfkbib expression to enhance cell proliferation and promote mammary gland hyperplasia. However, TBX3 is a multifunctional transcription factor and the NFkB pathway could be one of many pathways regulated by TBX3. Wnt signaling has also been shown to play a major role in regulating mammary gland development . A TBX3-/- mouse model lacked expression of LEF1 and Wnt10b , suggesting that Wnt signaling is a downstream target of TBX3 and that TBX3 may regulate mammary gland development via the Wnt signaling pathway. Additional experiments can be done to further elucidate other mechanisms by which TBX3 over-expression promotes mammary hyperplasia.
Studies have suggested a role for Tbx3/TBX3 in regulating the self-renewal of mouse embryonic stem (ES) cells as well as breast cancer stem-like cells [36, 45–47]. Mouse ES cells require leukemia inhibitory factor (LIF) to maintain their undifferentiated state . Mouse ES cells genetically modified to over-express Tbx3 and grown in culture without LIF were able to maintain their undifferentiated state . Knockdown of Tbx3 expression in mouse ES cells resulted in a loss of self-renewal, causing these cells to differentiate . These findings suggest that Tbx3 expression is necessary to maintain mouse ES cells in their undifferentiated state and plays a functional role to promote self-renewal. A recent study has proposed a model in which the expression of TBX3 in cancer cells promotes the expansion of cancer stem-like cells through paracrine fibroblast growth factor (FGF) signaling . Over-expression of TBX3 increased the proportion of cancer stem-like cells in MCF7 cells by nine-fold as well as lead to an increase in tumorsphere formation and tumor initiation , suggesting that TBX3 is sufficient to promote normal and cancer stem like cell phenotypes. Due to its role in promoting proliferation of mouse ES cells and breast cancer stem-like cells as well as its requirement for early mammary gland development, TBX3 may also play a role in regulating mammary stem cell proliferation. Mammary glands consist of two cell lineages: myoepithelial and luminal epithelial cells. Both of them arise from a common progenitor, the mammary stem cell. Research has shown that a single Lin-CD24+CD29high cell is able to generate a functional mammary gland, suggesting that these cells are mammary stem cells . To determine whether over-expression of TBX3 affects mammary stem cell proliferation, we performed FACS analysis of the stem-like cell population, Lin-CD24+CD29high, in doxycycline induced double transgenic mice and their un-induced littermate controls. We found that over-expression of TBX3 significantly increased the frequency of Lin-CD24+CD29high stem-like cell population (Figure 5A and 5B), indicating that TBX3 expression is associated with an increased number of mammary stem-like cells. This could explain another mechanism by which TBX3 over-expression can cause hyperplasia and accelerated mammary gland development. Further studies of the mechanisms by which TBX3 regulates mammary stem-like cells are required to improve our understanding of mammary gland development and TBX3 function.
TBX3 over-expression causes mammary gland hyperplasia possibly by inhibiting NFκBIB expression and thus promoting cell proliferation. Also, over-expression of TBX3 is associated with an increased number of mammary stem-like cells suggesting another mechanism by which TBX3 may promote mammary gland hyperplasia and contribute to breast cancer development.
To generate the Tet-on inducible N-myc-TBX3 expression cassette (tet-N-myc-TBX3-IRES-Luciferase), the full-length human TBX3 cDNA fused with the N-myc tag was subcloned from the expression vector, pcDNA-myc-TBX3, into the ClaI and SpeI sites of the TMILA plasmid, downstream of an inducible tetracycline promoter (Figure 1A). Correct insertion of the N-myc-TBX3 transgene into the TMILA plasmid was verified by sequencing.
Generation and PCR-genotyping of transgenic mice
To generate doxycycline inducible myc-TBX3 transgenic mice, the N-myc-TBX3 expression cassette (tet-myc-TBX3-IRES-luciferase) was cut out from the TMILA-myc-TBX3 plasmid using the PvuII restriction enzyme to remove the plasmid backbone. The fragment was gel-purified using the Qiagen Gel Extraction Kit (Valencia, CA) and filtered using a 0.1 micron filter. The purified DNA fragment was then diluted with injection buffer to a 2ng/μl concentration and microinjected at the UCI Transgenic Mouse Facility. A total of 176 fertilized eggs (obtained from FVB/N egg donors that were mated with fertile males) were injected. One-hundred-sixty-five eggs were implanted in the oviducts of pseudopregnant foster mothers. From these, a total of 43 pups were obtained. Potential founders were identified by PCR-based genotyping using a pTMILA and TBX3 gene specific primer set (forward; 5'- CGCGCAATTAACCCTCACTA-3' (pTMILA), reverse; 5'-AGGAATGACCGGATCTCTCA-3' (TBX3)). A total of 8 pups carrying the N-myc-TBX3 expression cassette were used as founders to cross with established MMTV-rtTA mice to create double transgenic mice (MMTV-rtTA; tet-myc-TBX3-IRES-Luciferase).
Transgene expression was induced by adding 2 mg/ml doxycycline to the drinking water from weaning age (3-4 weeks) as previously described . All mice involved in the experiments were examined weekly for palpable tumor formation.
In vivo imaging of Tet-on inducible TBX3 luciferase reporter system
For in vivo mouse imaging, a cooled ICCD camera was placed on top of a light-tight box. Prior to imaging, mice were sedated by intraperitoneal injection (i.p.) of 250 ng Xylazine and 2 mg Ketamine. After 5 minutes, an aqueous solution of luciferin (BioSynth, 150 mg/ml) was injected into the peritoneal cavity at 150 mg/kg body weight. An LED light, placed around the camera, was first turned on to acquire body surface reference images. At this time the field of view (F.O.V), focus and f/stop were adjusted. Afterwards, the chamber door was closed to exclude room light. We allowed 5 minutes for the integration of the ICCD camera before images were acquired.
To measure luciferase reporter gene expression in doxycycline induced and un-induced mammary glands of double transgenic mice, all 5 mammary glands were dissected, rinsed in PBS and tissues were homogenized in Reporter lysis buffer (Promega, Madison, WI). Insoluble tissue lysates were removed by centrifugation at 4°C for 5 minutes. Luciferase activity (Rlu) was measured using 10μl of protein lysate, the Luciferase assay kit (Promega, Madison, WI) and a Berthold luminometer (Berthold Australia Pty Ltd, Australia). The luciferase readings were normalized to total protein concentration.
Edu proliferation assay
For assessment of cell proliferation within the mammary gland, the fourth mammary glands from doxycycline induced and un-induced double transgenic mice were harvested at 10.5 days postcoitus (dpc) and 5μm thick sections were embedded in paraffin. Cell proliferation was detected using incorporation of 5-ethynyl-2'-deoxyuridine (EdU) with the Click-iT EdU Cell Proliferation Assay Kit (Invitrogen, Camarillo, CA), following the manufacturer's instructions. EdU that had been incorporated into newly synthesized DNA was detected by Alexa Fluor 594 azide (red) and cell nuclei were stained with Hoechst 33342 (Invitrogen, Camarillo, CA). The proportion of nucleated cells incorporating EdU was determined by fluorescence microscopy (Axioskop, Zeiss, Germany). Fifteen random 20× fields were taken from each group of litter matched doxycycline induced and un-induced double transgenic mice. The proliferating cells were quantified and normalized to the total cell number in each field.
Whole mount analysis
Whole mount preparation of mammary glands was performed at various time points as previously described . Briefly, mammary glands were removed from doxycycline induced and un-induced double transgenic mice and fixed overnight in acetic acid/ethanol (1:3) solution. Fixed mammary glands were then dehydrated using 70% ethanol for 30 minutes and stained overnight with Carmine stain. The mammary glands were then destained, dehydrated through a series of washes in 70%, 95% and 100% ethanol for 30 minutes each and defatted in xylene.
Histological staining and immunohistochemistry
The third mammary glands from doxycycline-induced and un-induced double transgenic mice were fixed and embedded in paraffin. Five micrometer thick sections were deparaffinized with xylene and stained with hematoxylin and eosin (H&E) or used for immunohistochemistry (IHC). For IHC, antigen retrieval was performed by treating deparaffinized sections with sodium citrate buffer (pH6) at 95°C for 20 minutes. The sections were then blocked for one hour with serum followed by an additional 10 minute blocking with hydrogen peroxide. Sections were incubated with rabbit anti-TBX3 (Zymed, Camarillo, CA) and rabbit anti-NFκBIB (Santa Cruz Biotechnology, Santa Cruz, CA) antibodies overnight at 4°C. The following day, sections were washed in PBS and incubated with biotinylated goat anti-rabbit IgG (Vector Laboratories, Burlingame, CA). Standard ABC kit and DAB kit (Vector Laboratories, Burlingame, CA) were used for visualization according to the manufacturer's instructions.
NFκBIB promoter reporter and luciferase assay
The NFKBIB promoter (-2500:+500 bp) was PCR-amplified from human genomic DNA. The PCR product was digested and subcloned into the pGL3 luciferase reporter construct (Promega, Madison, WI). COS-7 cells were transfected with either pcDNA3.1-Myc (control) or pcDNA3.1-Myc-TBX3 expression vectors together with the pGL3-NFκBIB luciferase reporter construct and a β-galactosidase control plasmid (pcDNA3.1/His/LacZ) using Lipofectamine 2000 (Invitrogen, Camarillo, CA). Cell lysates were harvested 48 hours after transfection. Luciferase activity was obtained using the Promega Luciferase Assay System (Promega, Madison, WI) according to the manufacturer's guidelines. β-galactosidase enzyme activity was measured using the Promega β-galactosidase Enzyme Assay System (Promega, Madison, CA) and used to normalize luciferase activity.
Mammary epithelial cell preparation and cell sorting
Mammary epithelial cells were prepared as previously described with modifications . Briefly, mammary glands were dissected and mechanically dissociated with scissors and a Tissue Tearor Homogenizer (Tearor), followed by enzymatic dissociation (DME/HAM with 5% BCS, 1 mM L-glutamine, 5μg/ml insulin, 500 ng/ml hydrocortisone, 10 ng/ml epidermal growth factor, 20 ng/ml cholera toxin, 300μg/ml collagenase, 100μg/ml hyaluranidase) for 5 hours at 37°C. Cells were pelleted by centrifugation, resuspended in 0.25% trypsin-EDTA and incubated at 37°C for 3 minutes. Cells were sequentially incubated with the following reagents: 5 mg/ml Dispase (Roche Diagnostics, Basel, Switzerland) in PBS for 5 minutes, 0.1 mg/ml DNase in PBS for 5 minutes and 0.64% NH4Cl for 3 minutes at 37°C. Cell suspensions were filtered through a 40-mm mesh to isolate single cells and were counted using a hematocytometer.
Mammary cells were then washed with 1 ml Buffer A (2%FBS, 0.1%NaN3 in PBS) and the cell pellets were resuspended in 500μl Buffer A. Twenty thousand mammary cells from each mouse were incubated with biotinylated anti-CD31, biotinylated anti-CD45 and biotinylated anti-TER119 (all 1:1000 dilution) for 15 minutes at room temperature to isolate the Lin+ cells (stained) from the Lin- cells (unstained). The cells were washed once with Buffer A and the cell pellets were resuspended in 150μl Buffer A. The cell suspension was then incubated with Streptavidin-conjugated APC, PE-labeled anti-CD24, and FITC conjugated anti-CD29 (all 1:1500) for 30 minutes at 4°C. Cells were washed twice with Buffer A and resuspended in 500μl Buffer A for analysis. (Data analysis was performed on the single cell gate using the demo version of FlowJo software http://www.flowjo.com/. Cell sorting was carried out on a Fluorescence-activated cell sorting (FACS) Vantage cell sorter (Becton Dickinson, Franklin Lakes, NJ). For all APC conjugated, PE conjugated and FITC conjugated staining, Mouse IgG (APC), Mouse IgG (PE) and Mouse IgG (FITC) isotype controls were used.
Animals were maintained in an approved animal facility and all animal work was carried out in accordance with the University of California Irvine Institutional Animal Care and Use Committee (IACUC, 2002-2421)....
Wilson V, Conlon FL: The T-box family. Genome Biol. 2002, 3 (6): REVIEWS3008-
Papaioannou VE, Silver LM: The T-box gene family. Bioessays. 1998, 20 (1): 9-19. 10.1002/(SICI)1521-1878(199801)20:1<9::AID-BIES4>3.0.CO;2-Q.
Bamshad M, Lin RC, Law DJ, Watkins WC, Krakowiak PA, Moore ME, Franceschini P, Lala R, Holmes LB, Gebuhr TC, Bruneau BG, Schinzel A, Seidman JG, Seidman CE, Jorde LB: Mutations in human TBX3 alter limb, apocrine and genital development in ulnar-mammary syndrome. Nat Genet. 1997, 16 (3): 311-315. 10.1038/ng0797-311.
Braybrook C, Doudney K, Marcano AC, Arnason A, Bjornsson A, Patton MA, Goodfellow PJ, Moore GE, Stanier P: The T-box transcription factor gene TBX22 is mutated in X-linked cleft palate and ankyloglossia. Nat Genet. 2001, 29 (2): 179-183. 10.1038/ng730.
Li QY, Newbury-Ecob RA, Terrett JA, Wilson DI, Curtis AR, Yi CH, Gebuhr T, Bullen PJ, Robson SC, Strachan T, Bonnet D, Lyonnet S, Young ID, Raeburn JA, Buckler AJ, Law DJ, Brook JD: Holt-Oram syndrome is caused by mutations in TBX5, a member of the Brachyury (T) gene family. Nat Genet. 1997, 15 (1): 21-29. 10.1038/ng0197-21.
Merscher S, Funke B, Epstein JA, Heyer J, Puech A, Lu MM, Xavier RJ, Demay MB, Russell RG, Factor S, Tokooya K, Jore BS, Lopez M, Pandita RK, Lia M, Carrion D, Xu H, Schorle H, Kobler JB, Scambler P, Wynshaw-Boris A, Skoultchi AI, Morrow BE, Kucherlapati R: TBX1 is responsible for cardiovascular defects in velo-cardio-facial/DiGeorge syndrome. Cell. 2001, 104 (4): 619-629. 10.1016/S0092-8674(01)00247-1.
Rowley M, Grothey E, Couch FJ: The role of Tbx2 and Tbx3 in mammary development and tumorigenesis. J Mammary Gland Biol Neoplasia. 2004, 9 (2): 109-118.
Brummelkamp TR, Kortlever RM, Lingbeek M, Trettel F, MacDonald ME, van Lohuizen M, Bernards R: TBX-3, the gene mutated in Ulnar-Mammary Syndrome, is a negative regulator of p19ARF and inhibits senescence. J Biol Chem. 2002, 277 (8): 6567-6572. 10.1074/jbc.M110492200.
Carlson H, Ota S, Campbell CE, Hurlin PJ: A dominant repression domain in Tbx3 mediates transcriptional repression and cell immortalization: relevance to mutations in Tbx3 that cause ulnar-mammary syndrome. Hum Mol Genet. 2001, 10 (21): 2403-2413. 10.1093/hmg/10.21.2403.
He M, Wen L, Campbell CE, Wu JY, Rao Y: Transcription repression by Xenopus ET and its human ortholog TBX3, a gene involved in ulnar-mammary syndrome. Proc Natl Acad Sci USA. 1999, 96 (18): 10212-10217. 10.1073/pnas.96.18.10212.
Lingbeek ME, Jacobs JJ, van Lohuizen M: The T-box repressors TBX2 and TBX3 specifically regulate the tumor suppressor gene p14ARF via a variant T-site in the initiator. J Biol Chem. 2002, 277 (29): 26120-26127. 10.1074/jbc.M200403200.
Davenport TG, Jerome-Majewska LA, Papaioannou VE: Mammary gland, limb and yolk sac defects in mice lacking Tbx3, the gene mutated in human ulnar mammary syndrome. Development. 2003, 130 (10): 2263-2273. 10.1242/dev.00431.
Bamshad M, Le T, Watkins WS, Dixon ME, Kramer BE, Roeder AD, Carey JC, Root S, Schinzel A, Van Maldergem L, Gardner RJ, Lin RC, Seidman CE, Seidman JG, Wallerstein R, Moran E, Sutphen R, Campbell CE, Jorde LB: The spectrum of mutations in TBX3: Genotype/Phenotype relationship in ulnar-mammary syndrome. Am J Hum Genet. 1999, 64 (6): 1550-1562. 10.1086/302417.
Klopocki E, Neumann LM, Tonnies H, Ropers HH, Mundlos S, Ullmann R: Ulnar-mammary syndrome with dysmorphic facies and mental retardation caused by a novel 1.28 Mb deletion encompassing the TBX3 gene. Eur J Hum Genet. 2006
Aubele M, Auer G, Braselmann H, Nahrig J, Zitzelsberger H, Quintanilla-Martinez L, Smida J, Walch A, Hofler H, Werner M: Chromosomal imbalances are associated with metastasis-free survival in breast cancer patients. Anal Cell Pathol. 2002, 24 (2-3): 77-87.
Fan W, Huang X, Chen C, Gray J, Huang T: TBX3 and its isoform TBX3+2a are functionally distinctive in inhibition of senescence and are overexpressed in a subset of breast cancer cell lines. Cancer Res. 2004, 64 (15): 5132-5139. 10.1158/0008-5472.CAN-04-0615.
Yarosh W, Barrientos T, Esmailpour T, Lin L, Carpenter PM, Osann K, Anton-Culver H, Huang T: TBX3 is overexpressed in breast cancer and represses p14 ARF by interacting with histone deacetylases. Cancer Res. 2008, 68 (3): 693-699. 10.1158/0008-5472.CAN-07-5012.
Lomnytska M, Dubrovska A, Hellman U, Volodko N, Souchelnytskyi S: Increased expression of cSHMT, Tbx3 and utrophin in plasma of ovarian and breast cancer patients. Int J Cancer. 2006, 118 (2): 412-421. 10.1002/ijc.21332.
Mowla S, Pinnock R, Leaner VD, Goding CR, Prince S: PMA-induced up-regulation of TBX3 is mediated by AP-1 and contributes to breast cancer cell migration. Biochem J. 2010, 433 (1): 145-153.
Carlson H, Ota S, Song Y, Chen Y, Hurlin PJ: Tbx3 impinges on the p53 pathway to suppress apoptosis, facilitate cell transformation and block myogenic differentiation. Oncogene. 2002, 21 (24): 3827-3835. 10.1038/sj.onc.1205476.
Jerome-Majewska LA, Jenkins GP, Ernstoff E, Zindy F, Sherr CJ, Papaioannou VE: Tbx3, the ulnar-mammary syndrome gene, and Tbx2 interact in mammary gland development through a p19Arf/p53-independent pathway. Dev Dyn. 2005, 234 (4): 922-933. 10.1002/dvdy.20575.
Karin M: Nuclear factor-kappaB in cancer development and progression. Nature. 2006, 441 (7092): 431-436. 10.1038/nature04870.
Cao Y, Bonizzi G, Seagroves TN, Greten FR, Johnson R, Schmidt EV, Karin M: IKKalpha provides an essential link between RANK signaling and cyclin D1 expression during mammary gland development. Cell. 2001, 107 (6): 763-775. 10.1016/S0092-8674(01)00599-2.
Brantley DM, Chen CL, Muraoka RS, Bushdid PB, Bradberry JL, Kittrell F, Medina D, Matrisian LM, Kerr LD, Yull FE: Nuclear factor-kappaB (NF-kappaB) regulates proliferation and branching in mouse mammary epithelium. Mol Biol Cell. 2001, 12 (5): 1445-1455.
Wu JT, Kral JG: The NF-kappaB/IkappaB signaling system: a molecular target in breast cancer therapy. J Surg Res. 2005, 123 (1): 158-169. 10.1016/j.jss.2004.06.006.
Rodriguez M, Aladowicz E, Lanfrancone L, Goding CR: Tbx3 represses E-cadherin expression and enhances melanoma invasiveness. Cancer Res. 2008, 68 (19): 7872-7881. 10.1158/0008-5472.CAN-08-0301.
Renard CA, Labalette C, Armengol C, Cougot D, Wei Y, Cairo S, Pineau P, Neuveut C, de Reynies A, Dejean A, Perret C, Buendia MA: Tbx3 is a downstream target of the Wnt/beta-catenin pathway and a critical mediator of beta-catenin survival functions in liver cancer. Cancer Res. 2007, 67 (3): 901-910. 10.1158/0008-5472.CAN-06-2344.
Ito A, Asamoto M, Hokaiwado N, Takahashi S, Shirai T: Tbx3 expression is related to apoptosis and cell proliferation in rat bladder both hyperplastic epithelial cells and carcinoma cells. Cancer Lett. 2005, 219 (1): 105-112. 10.1016/j.canlet.2004.07.051.
Sternlicht MD: Key stages in mammary gland development: the cues that regulate ductal branching morphogenesis. Breast Cancer Res. 2006, 8 (1): 201-10.1186/bcr1368.
Robinson GW: Cooperation of signaling pathways in embryonic mammary gland development. Nat Rev Genet. 2007, 8 (12): 963-972. 10.1038/nrg2227.
Watson CJ, Khaled WT: Mammary development in the embryo and adult: a journey of morphogenesis and commitment. Development. 2008, 135 (6): 995-1003. 10.1242/dev.005439.
Smalley M, Ashworth A: Stem cells and breast cancer: A field in transit. Nat Rev Cancer. 2003, 3 (11): 832-844. 10.1038/nrc1212.
Platonova N, Scotti M, Babich P, Bertoli G, Mento E, Meneghini V, Egeo A, Zucchi I, Merlo GR: TBX3, the gene mutated in ulnar-mammary syndrome, promotes growth of mammary epithelial cells via repression of p19ARF, independently of p53. Cell Tissue Res. 2007, 328 (2): 301-316. 10.1007/s00441-006-0364-4.
Vance KW, Carreira S, Brosch G, Goding CR: Tbx2 is overexpressed and plays an important role in maintaining proliferation and suppression of senescence in melanomas. Cancer Res. 2005, 65 (6): 2260-2268. 10.1158/0008-5472.CAN-04-3045.
Eddy SF, Guo S, Demicco EG, Romieu-Mourez R, Landesman-Bollag E, Seldin DC, Sonenshein GE: Inducible IkappaB kinase/IkappaB kinase epsilon expression is induced by CK2 and promotes aberrant nuclear factor-kappaB activation in breast cancer cells. Cancer Res. 2005, 65 (24): 11375-11383. 10.1158/0008-5472.CAN-05-1602.
Fillmore CM, Gupta PB, Rudnick JA, Caballero S, Keller PJ, Lander ES, Kuperwasser C: Estrogen expands breast cancer stem-like cells through paracrine FGF/Tbx3 signaling. Proc Natl Acad Sci USA. 2010
Shackleton M, Vaillant F, Simpson KJ, Stingl J, Smyth GK, Asselin-Labat ML, Wu L, Lindeman GJ, Visvader JE: Generation of a functional mammary gland from a single stem cell. Nature. 2006, 439 (7072): 84-88. 10.1038/nature04372.
Jones PH, Harper S, Watt FM: Stem cell patterning and fate in human epidermis. Cell. 1995, 80 (1): 83-93. 10.1016/0092-8674(95)90453-0.
Rietze RL, Valcanis H, Brooker GF, Thomas T, Voss AK, Bartlett PF: Purification of a pluripotent neural stem cell from the adult mouse brain. Nature. 2001, 412 (6848): 736-739. 10.1038/35089085.
Cho KW, Kim JY, Song SJ, Farrell E, Eblaghie MC, Kim HJ, Tickle C, Jung HS: Molecular interactions between Tbx3 and Bmp4 and a model for dorsoventral positioning of mammary gland development. Proc Natl Acad Sci USA. 2006, 103 (45): 16788-16793. 10.1073/pnas.0604645103.
Weinstein EJ, Grimm S, Leder P: The oncogene heregulin induces apoptosis in breast epithelial cells and tumors. Oncogene. 1998, 17 (16): 2107-2113. 10.1038/sj.onc.1202428.
Weinstein EJ, Kitsberg DI, Leder P: A mouse model for breast cancer induced by amplification and overexpression of the neu promoter and transgene. Mol Med. 2000, 6 (1): 4-16.
Zhu Z, Zheng T, Lee CG, Homer RJ, Elias JA: Tetracycline-controlled transcriptional regulation systems: advances and application in transgenic animal modeling. Semin Cell Dev Biol. 2002, 13 (2): 121-128. 10.1016/S1084-9521(02)00018-6.
Gunther EJ, Belka GK, Wertheim GB, Wang J, Hartman JL, Boxer RB, Chodosh LA: A novel doxycycline-inducible system for the transgenic analysis of mammary gland biology. FASEB J. 2002, 16 (3): 283-292. 10.1096/fj.01-0551com.
Ivanova N, Dobrin R, Lu R, Kotenko I, Levorse J, DeCoste C, Schafer X, Lun Y, Lemischka IR: Dissecting self-renewal in stem cells with RNA interference. Nature. 2006, 442 (7102): 533-538. 10.1038/nature04915.
Han J, Yuan P, Yang H, Zhang J, Soh BS, Li P, Lim SL, Cao S, Tay J, Orlov YL, Lufkin T, Ng HH, Tam WL, Lim B: Tbx3 improves the germ-line competency of induced pluripotent stem cells. Nature. 2010, 463 (7284): 1096-1100. 10.1038/nature08735.
Niwa H, Ogawa K, Shimosato D, Adachi K: A parallel circuit of LIF signaling pathways maintains pluripotency of mouse ES cells. Nature. 2009, 460 (7251): 118-122. 10.1038/nature08113.
Williams RL, Hilton DJ, Pease S, Willson TA, Stewart CL, Gearing DP, Wagner EF, Metcalf D, Nicola NA, Gough NM: Myeloid leukaemia inhibitory factor maintains the developmental potential of embryonic stem cells. Nature. 1988, 336 (6200): 684-687. 10.1038/336684a0.
Moorehead RA, Fata JE, Johnson MB, Khokha R: Inhibition of mammary epithelial apoptosis and sustained phosphorylation of Akt/PKB in MMTV-IGF-II transgenic mice. Cell Death Differ. 2001, 8 (1): 16-29. 10.1038/sj.cdd.4400762.
We thank Thomas Fielder and Kaixuan Shi (Transgenic Mouse Facility, UCI) for microinjection; Han Yan (Department of Physics and Astronomy, UCI) for the in vivo mouse imaging; Dr. Sastry V. Gollapudi (Department of Medicine, UCI) for FACS analysis of the mammary stem cells. The authors are also grateful to Drs. Bogi Andersen and Sha Tang for critical reading of this manuscript. This project was partially supported by The Susan G. Komen Breast Cancer Foundation (BCTR-133006) (TH) and the NCI (1R01 CA121876) (TH). TE is supported by 1R01CA121876 minority supplemental grant.
TE, JL, TH conceived and designed the experiments and analyzed data. JL, TE, XS, GG, AL performed the experiments. JL, TE, TH wrote the manuscript. All authors have read and have approved the final manuscript.
Jing Liu, Taraneh Esmailpour contributed equally to this work.
