Live imaging of muscle histolysis in Drosophila metamorphosis

Abstract

Background

The contribution of programmed cell death (PCD) to muscle wasting disorders remains a matter of debate. Drosophila melanogaster metamorphosis offers the opportunity to study muscle cell death in the context of development. Using live cell imaging of the abdomen, two groups of larval muscles can be observed, doomed muscles that undergo histolysis and persistent muscles that are remodelled and survive into adulthood.

Method

To identify and characterize genes that control the decision between survival and cell death of muscles, we developed a method comprising in vivo imaging, targeted gene perturbation and time-lapse image analysis. Our approach enabled us to study the cytological and temporal aspects of abnormal cell death phenotypes.

Results

In a previous genetic screen for genes controlling muscle size and cell death in metamorphosis, we identified gene perturbations that induced cell death of persistent or inhibit histolysis of doomed larval muscles. RNA interference (RNAi) of the genes encoding the helicase Rm62 and the lysosomal Cathepsin-L homolog Cysteine proteinase 1 (Cp1) caused premature cell death of persistent muscle in early and mid-pupation, respectively. Silencing of the transcriptional co-repressor Atrophin inhibited histolysis of doomed muscles. Overexpression of dominant-negative Target of Rapamycin (TOR) delayed the histolysis of a subset of doomed and induced ablation of all persistent muscles. RNAi of AMPKα, which encodes a subunit of the AMPK protein complex that senses AMP and promotes ATP formation, led to loss of attachment and a spherical morphology. None of the perturbations affected the survival of newly formed adult muscles, suggesting that the method is useful to find genes that are crucial for the survival of metabolically challenged muscles, like those undergoing atrophy. The ablation of persistent muscles did not affect eclosion of adult flies.

Conclusions

Live imaging is a versatile approach to uncover gene functions that are required for the survival of muscle undergoing remodelling, yet are dispensable for other adult muscles. Our approach promises to identify molecular mechanisms that can explain the resilience of muscles to PCD.

Background

Skeletal muscles are essential for mobility and metabolism. Therefore, the preservation of muscles mass and strength plays an important role in improving the quality of life in sickness and old age. The two most common types of muscle wasting are sarcopenia, the ageing related loss of skeletal muscles, and cachexia, a metabolic syndrome associated with diseases such as cancer, heart failure and HIV [1]. Muscle degeneration can also result from heritable muscular dystrophies, such as Duchenne muscular dystrophy [2] or centronuclear myopathies [3].

Muscle wasting can result from two cellular processes; the reversible reduction of muscle fiber size by atrophy or the irreversible elimination of muscles by programmed cell death (PCD). The changes of muscle size are controlled by conserved signaling pathways that regulate the rates of protein synthesis and degradation. Protein synthesis and cell growth are activated by a signaling cascade consisting of insulin-like growth factor-1 (IGF-1), the kinase Akt1 and the mammalian target of rapamycin (mTOR) [4]. Protein breakdown and atrophy are activated by a pathway comprising Myostatin, Smad2 and the FoxO transcription factors [5]. Proteins are degraded by two processes, the autophagy lysosomal pathway [6] and the ubiquitin proteasome system [7].

Less understood is the contribution of PCD to muscle wasting. Satellite cells are myogenic stem cells that fuse with muscles to repair injuries and drive hypertrophy. In old age, satellite cells are more prone to apoptosis, thus promoting sarcopenia by affecting the repair of damaged muscles [8]. The relationship between cell death in postmitotic, multi-nucleated muscle fibers and muscle wasting is less clear. Skeletal muscles are considered to be more resistant to PCD than proliferating and mono-nucleated cells. In cultured C2C12 cells treated with the apoptosis inducers H₂O₂ or staurosporine, apoptosis was significantly reduced to 10 % in myotubes compared to 50 % in myoblasts, although several pro-apoptotic proteins like caspases, EndoG and AIF were induced [9]. The protective effect in differentiated muscles was proposed to be mediated by yet undefined anti-apoptosis mechanisms. Muscle fibers exhibit morphological changes during PCD that are different from those observed in mono-nucleated cells. The structural analysis of rat skeletal muscles during post-denervation atrophy revealed cell shrinkage and chromatin condensation. However, the occurrence of DNA fragmentation, a hallmark apoptotic phenotype, was negligible [10]. Furthermore, apoptosis associated with atrophy in rat muscles was found outside of but not inside muscle fibers [11].

Most knowledge about PCD in mammalian muscles is derived from experimental interventions like denervation, immobilization or exposure to toxins. As such, progress is hampered by the lack of models to study naturally occurring muscle cell death. Non-mammalian models can fill this knowledge gap since degeneration of skeletal muscles can be studied without experimental manipulations during amphibian and insect development. In Xenopus laevis metamorphosis, thyroid hormone induces apoptosis of tail muscles in the tadpole [12], which is associated with the formation of muscle apoptotic bodies (sarcolytes) and chromatin fragmentation. During metamorphosis of Lepidoptera (moths and butterflies), most muscles of caterpillars are destroyed, while a few persistent muscles survive into adulthood [13]. Major insights in moths were obtained from research on the giant intersegmental muscles (ISM) of the abdomen that undergo hormonally induced atrophy prior to eclosion and die after eclosion [14]. ISM PCD, which is triggered by changes in juvenile hormone 20-hydroxyecdysone, does not display a variety of morphological features associated with classical apoptosis, such as chromatin condensation or phagocytosis [15, 16].

Metamorphosis of the fruit Drosophila melanogaster is another insect model to study apoptosis of muscles in the context of animal development. Compared to the moth models, it offers an arsenal of genetic tools such as targeted reporter gene expression and gene perturbation. Since the pupal cuticle is transparent, muscle development can be followed by live cell imaging. Skeletal muscles arise in embryogenesis through the fusion of founder cells with fusion competent myoblasts [17]. During the larval stages lasting 4 to 5 days, body wall muscles grow up to 50-fold in size while their number stays constant [18]. During the subsequent 5 days of metamorphosis, which transforms larvae into adult flies, larval muscles follow two major developmental pathways. Most muscles undergo cell death and break down into sarcolytes. A second population of persistent muscles is resistant to histolysis and survives to adulthood. The alternative fates can be observed simultaneously in the pupal abdomen by live imaging of muscles marked with fluorescent proteins [19]. Dorsal external oblique muscles (DEOMs) disintegrate coincident with head eversion (HE) at the prepupal to pupal transition (PPT), which takes place around 12 h after puparium formation (Fig. 1a). More basally located dorsal internal oblique muscles (DIOMs) are resistant to pupal cell death and are remodeled into temporary adult muscles, that will later degenerate within 24 h of eclosion [20]. Remodeling of DIOMs involves atrophy in early and growth in late metamorphosis. The molecular mechanisms regulating PCD of larval muscles remain poorly understood. Ecdysone receptor signaling activates cell death of muscles and other larval tissues. Cell death in midgut and other tissues is promoted by the autophagy lysosomal pathway [21]. However, autophagy does not appear to contribute to cell death of muscles. Instead, histolysis of muscles appears to involve apoptosis [22]. Even less is known about the genes that protect persistent muscles from hormone-induced histolysis.

Fig. 1

Detection of muscle cell death phenotypes by macro zoom microscopy. a Anatomical drawings of the dorsal sides of a fly during prepupal and pupal stage illustrate the fates of two population of larval body wall muscles. While the apically located DEOMs (blue) are destroyed during and right after head eversion, the more basally located DIOMs (yellow) survive throughout pupation into adulthood. A1-A7 indicate the positions of abdominal segments. Panels (b-i) show dorsal views (anterior on the left) of a prepupa (b, c) and late pupae (d-i) expressing the MHC-tau-GFP reporter to label muscles that were imaged using a macro zoom microscope. The first five abdominal segments (A1-A5) are indicated. (b) In prepupae, live doomed muscles like a DEOM1 in A4 and persistent muscles like a DIOM1 in A3 can be viewed through transparent cuticles. (c) Close-up of (b). d In late pupation, persistent larval muscles that escaped histolysis and were remodeled are seen in A1-A5. The thorax contains the prominent indirect flight muscles (IFM). e RNAi of Rm62, f RNAi of Cp1 and g overexpression of dominant negative TOR (TOR ^TED) induced cell death of persistent muscles. h Atrophin (Atro) RNAi prevented histolysis of doomed DEOMs in the 2nd and, occasionally, 3rd abdominal segment. g AMPKα RNAi induced degeneration of DIOMs into muscle spheroids (arrow). None of the gene perturbation affected the development of newly formed adult muscles like the IFMs. The 500 μm bar corresponds to all panels except (c)

In previous studies, we demonstrated that in vivo microscopy could image abdominal muscle development throughout the 5 days of Drosophila metamorphosis [19, 23]. Here we extend our methodology to identify and characterize genes that are involved in the PCD of doomed muscles and the survival of remodeled muscles. We used a macro zoom microscope to screen for candidate gene perturbations that either prevent or induce cell death, while multi-location laser scanning confocal microscopy (LSCM) helped us to elucidate their phenotypic consequences in more detail. Loss of function of TOR, the RNA helicase Rm62, the lysosomal protease cathepsin-L homolog Cp1 and the master regulator of energy metabolism AMPKα caused histolysis of persistent larval muscles. However, none of these gene perturbations affected the survival of newly formed adult muscles. In contrast, reducing the expression of Atrophin inhibited histolysis of a subset of doomed larval muscles. Since this approach was able to identify genes that protect Drosophila persistent muscles from degeneration, it is conceivable that some conserved genes may also promote resilience of mammalian skeletal muscles to PCD when undergoing atrophy.

Methods

Drosophila stocks

We used the UAS-GAL4 system [24] for targeted expression of fluorescent reporter genes, small hairpin (sh) RNAs and effector proteins in muscles. P{Mef2-GAL4} on the 3rd chromosome (B-27390, Bloomington Drosophila stock center) served as a muscle-specific driver [25] and was recombined with P{UAS-His2av-mKO}3 (B-53731) to mark myonuclei with Histone H2Av-mKO (monomeric kusabira orange), henceforth referred to as histone-mKO. Mef2 is the Drosophila homolog of the vertebrate myocyte-specific enhancer factor 2, which is expressed in mesoderm, visceral and somatic muscles [26]. P{MHC-tau-GFP}1 was used to label the cytoplasm of muscle fibers. The GFP-reporter linked to the promoter of the myosin heavy-chain (MHC) gene is expressed in somatic musculature [27]. All UAS-shRNA strains were derived from Transgenic RNAi Project (TRiP) collection [28]. The UAS-shRNA and UAS-effector transgenic lines affecting cell survival and death of larval abdominal muscles studied in this report are listed in Table 1. A complete list of the UAS-lines used for gene perturbations in out pilot screen was previously described [29] and is provided as a supplement (Additional file 1: Table S1). In addition, we knocked down TOR by RNAi using the stock B-35578 (TRiP# GL00156). The P{UAS-Cp1-mKO2} reporter line [30] was used to evaluate the target specificity of Cp1-sRNA constructs. To visualize cell death in live muscle and non-muscle cells, we used the enhancer trap line P{GawB} how [24B] on the 3rd chromosome (B-1767) that was recombined with P{UAS-His2av-mKO} and crossed with the mitochondrial marker P{UAS-Mito-HA-GFP}3 (B-8443) [31] to visualize the cytoplasm.

Table 1 List of gene perturbations that affect survival of larval abdominal muscles in metamorphosis

In our gene perturbation experiments, we crossed females of the reporter line MHC-tau-GFP/FM7-GFP; Mef2-GAL4, UAS-histone-mKO/TM6B Tb with males of the UAS-GeneX-cDNA or UAS-GeneX-shRNA lines. From the progeny, we selected non-Tubby prepupae expressing both fluorophores (e.g. MHC-tau-GFP/+; Mef2-GAL4, UAS-histone-mKO/UAS-GeneX-shRNA) for inspection of muscle phenotypes. For convenience, we will refer to these animals as Muscle-GO-GP (GO = Green + Orange live reporter, GP = Gene perturbation). The samples were examined using an Olympus MVX10 fluorescence macro zoom microscope (Olympus, Japan). The UAS-Chro-shRNA construct (TRiP#GL00503, B-36084) when crossed with Muscle-GO-GP displayed no abnormalities of muscles development, eclosion and ability to fly and was therefore used as control throughout this study.

Screening for muscle phenotypes using macro zoom microscopy

Usually, 20 Muscle-GO-GP prepupae were arranged dorsal side up in 4 groups of 5 samples on plastic Petri dishes. We recorded images at daily intervals for up to 6 days or until the adult flies eclosed using an Olympus MVX10 macro zoom microscope equipped with a DP73 digital CCD camera and cellSens acquisition software. Macro zoom microscopes are equipped with zoom objective lenses of high numerical aperture (N.A.) to resolve fine details in large samples at long working distances. We used the MVPLAPO 1× objective lens with an N.A. of 0.25. The fields of view were recorded twice with filters for green and orange fluorescence, at a zoom factor of 1.25, all of which resulted in digital color images (TIF or PNG format) of 2400 × 1800 pixels and a pixel size of 2.41 microns/pixel. Images were stored on a shared network drive to facilitate the visual inspection of phenotypes by multiple observers. To assess the effects of gene perturbations on muscle function we monitored eclosion and the ability to fly in adult flies.

Time-lapse confocal microscopy of metamorphosis

The protocol for sample preparation and time-lapse imaging of Drosophila pupae was previously described [32]. Live samples were collected at the white pupal stage, rinsed with water to remove the fly food from their surface and inspected under a macro zoom fluorescence microscope to confirm expression of both reporter genes. Up to 30 prepupae were positioned dorsal side down on an uncoated 32 mm diameter glass bottom dish (MatTek, Ashland, Massachusetts). The live samples were mounted in CyGEL (Biostatus Ltd, Leicester, UK) to restrict their movement during imaging. Head eversion leads to compression and a posterior shift of the abdomen. As our goal was to view pupal abdominal segments 1–5 during live imaging, prepupae had to be placed in such a way that the anterior border of their 3rd abdominal segment was adjacent to one side of the field of view. A wet tissue was kept around the specimens to maintain humidity levels during imaging. We used the Zeiss LSM 5 Live (Carl Zeiss, Jena, Germany) inverted line scanning confocal microscope equipped with a motorized XY scanning stage to perform multi-location time-lapse imaging. 3D time-lapse image acquisition was carried out for 5 days at 30 minute intervals (240 time points per sample) using a 10×/0.3 EC-Plan-Neofluar M27 air objective, at a scan zoom of 0.5. The two colour channels were recorded sequentially; channel1 with an excitation laser of 488 nm, band path (BP) filter 500–525; channel 2 with 532 nm laser line, BP 560–675. Image stacks containing 35–40 optical slices were collected at 13.2 μm intervals. Each optical slice had a frame size of 1024 × 1024 pixels with a pixel size of 1.25 μm. The manufacturer’s Zen 2008 software was used for image acquisition, with the built-in multi-time series (MTS) macro controlling repetitive scanning of multiple locations. The MTS saved one LSM image file per time point and location. The temperature of the microscope room was set to 22 °C for most experiments. LSCM recordings of samples expressing Atro and AMPKα shRNA were performed at 25 °C. We used a data logger device to record temperature and humidity during imaging. The speed of metamorphosis depends on temperature. Samples imaged by LSCM at 22 °C eclosed on average 107 h after entering head eversion, while this period was reduced to around 75 h at 25 °C.

Image analysis workflow

We previously introduced a pipeline for the visualization and quantification of in vivo microscopy data [32]. Most steps were carried out using custom software tools, unless otherwise indicated. Using the TLM-Converter custom software [33], we concatenated the image stacks stored in 8-bit LSM format to create one 3D time-lapse ICS file per sample with sizes ranging from 17 to 19 Gigabytes (GB). 3D stacks in ICS format were converted to maximum intensity projections (MIPs) to generate 2D time-lapse images which were saved as multi-page TIFF files. Uncompressed TIFF files of 240 time points had sizes of 737 MB. TIFF files could be compressed over 20 fold using JPEG compression without noticeable degradation in image quality.

Phenotypic analysis of time-lapse image data was performed using the TLM-Explorer tool [23]. Besides experimental parameters such as genotype, time interval and resolution, the user has to define the onset of head eversion (HE) as the temporal reference point for comparing different datasets. HE marks the transition from the larval to the tripartite adult body plan comprising head, thorax and abdomen. The beginning of HE is recognized by rapid movements of abdominal muscles that lead to misalignments between optical slices during 3D imaging and blurring of image projections. Developmental time points are indicated in hours and minutes (h:m) after head eversion (aHE), where negative values refer to the prepupal and positive to the pupal stage.

The image analysis workflow was implemented as a custom tool in the C++. NET framework using the following libraries: FreeImage [34] handled the processing of multi-page TIFF files and libics the import of ICS files [35]. To prepare videos, we exported annotated frames as JPEG files and built animations using the VirtualDub video processing software. Videos were exported as AVI files and converted to MP4 using the Freemake Video converter software. To create the figures in our manuscript, we used Photoshop CS3 (Adobe) and ACDSee Pro 5 (ACD Systems Int. Inc.).

Statistical analysis

Statistical data analysis was performed using Excel (Microsoft) and Minitab 16 (Minitab Inc.). Minitab was used to compute the confidence intervals of proportions and produce box-and-whisker plots (boxplots). Excel was applied to calculate proportions and plot bar charts.

Results

Live imaging based screening for genes regulating survival of larval muscles in metamorphosis

Fluorescent microscopy reveals the contrasting fates of dorsal abdominal muscles in prepupae. Dorsal external oblique muscles (DEOMs) are eliminated by programmed cell death, while the dorsal internal oblique muscles (DIOMs) resist histolysis and persist into adulthood (Fig. 1a-c). According to nomenclature in the literature [20], the most dorsal muscles in the first five abdominal segments A1 to A5 are referred to as DEOM1 and DIOM1, more lateral ones as DEOM2/3 or DIOM2/3. To identify genes that promote cell death of doomed or survival of persistent larval muscles during metamorphosis, we developed a screen that is based on live imaging, targeted gene perturbation and time-lapse image analysis. Females of a master stock containing three transgenes, the muscle specific driver Mef2-GAL4, UAS-histone-mKO to label nuclei and MHC-tau-GFP to visualize the cytoplasm of muscles, were crossed to males carrying UAS effector constructs to drive the expression of transgenic proteins and small hairpin (sh) RNAs for RNA interference (RNAi). The phenotypic effects of muscle specific gene perturbation were assessed by in vivo microscopy in two steps as previously described [30]. First, to screen for interesting phenotypes, we monitored live muscle development in a minimum of 20 specimens per genotype at daily intervals using a fluorescence macro zoom microscope. To evaluate effects on muscle function, we scored eclosion rates and the ability to fly. Second, gene perturbations resulting in interesting phenotypes were further examined by 3D time-lapse LSCM from the prepupal to pharate adult stage for 4–5 days at 30 min intervals. Time-lapse imaging was performed in multiple locations (up to 30 samples) using a x-y scanning stage. Using custom software, we created time-lapse maximum intensity projections (MIPs) of 3D image stacks and performed time-series image analysis of muscles development during metamorphosis. We had earlier performed a pilot screen with 119 publicly available UAS fly stocks, involving 98 unique genes, which were targeted by 100 RNAi and 19 protein-overexpression constructs [30] (Additional file 1: Table S1). Five of the gene perturbations specifically interfered with cell death or survival of larval muscles without affecting the development of newly formed adult muscles (Table 1). Macro zoom microscopy revealed that RNAi of the RNA helicase Rm62 (Fig. 1e) and Cysteine proteinase 1 (Cp1) (Fig. 1f), and overexpression of dominant negative TOR induced the removal of DIOMs (Fig. 1g). Atrophin RNAi prevented histolysis of a subset of DEOMs (Fig. 1h). RNAi of AMP-activated protein kinase α subunit (AMPKα) caused the loss of tubular morphology and degeneration of DIOMs (Fig. 1i). About half of the RNAi constructs displayed wildtype morphology and function of muscles, which were indistinguishable from flies without RNAi overexpression. One of these constructs, UAS-Chro-shRNA, was chosen as a control.

Live imaging of muscle histolysis by confocal microscopy

The dynamics of muscle histolysis can be viewed in detail at the subcellular level using LSCM (Fig. 2). Prior to head eversion (HE), DEOM1s lose their rectangular shape and display a curvy contour (Fig. 2a, b), while nuclear fluorescence increases due to chromatin condensation (Fig. 2a’, b’). More laterally located DEOM2s undergo histolysis after HE, usually between +5 h to +10 h aHE (Fig. 2c, d). Once the vigorous muscle contractions during HE have stabilized, DEOM1s are already shattered and continue to disintegrate into sarcolytes that retain tau-GFP and, occasionally contain condensed myonuclei labelled with histone-mKO (Fig. 2c-h, arrow heads). Muscle histolysis does not unfold like a typical apoptosis. Nuclei condense without subsequent fragmentation. In fact, bright condensed nuclei can be observed until late pupation (Fig. 2g), suggesting negligible, if any, nuclear fragmentation occurs. The difference between PCD in muscles and mono-nucleated cells (MNCs) could be visualized using the muscle-specific Gal4-driver 24B-Gal4 which is expressed in muscles and more apically located MNCs, presumably hypodermis (Additional file 2: Figure S1). After +6 h aHE, nuclei of MNCs condensed and showed fragmentation (Fig. 2i). We determined an average duration between nuclear condensation and fragmentation of 45.4 ± 23.2 min (2 pupae; 14 cells; 95 % CI of mean 32.0 to 58.7). In contrast, we did not observe any fragmentation of condensed myonuclei in dying muscles of the same pupae (Fig. 2j). The absence of nuclear fragmentation is consistent with studies on Manduca and denervated rat muscles, all of which support the idea that PCD in muscles is different from classical apoptosis [10, 16]. Fluorescent proteins in sarcolytes showed remarkable stability, persisting up 3–4 days following HE, indicating that membranes of sarcolytes remained intact to prevent leakage and that proteolysis was subdued. Muscle fragmentation, instead of rapid self-destruction, may help maintain the role of muscles as a reservoir of amino acids and other metabolites that can be slowly released during metamorphosis.

Fig. 2

Cell death in wildtype doomed muscles observed by confocal microscopy. All images show dorsal views (anterior left) of prepupal (a, b) and pupal (c-h) abdominal regions. Muscles were labeled with Mhc-tau-GFP (green) and myonuclei with UAS-histone-mKO (red, except for a’, b’ in white and h, i, j in magenta) driven by Mef2-Gal4. (a-g) correspond to the same specimen. (a, b) Disintegration of DEOM1s is initiated prior to HE and accompanied by condensation of myonuclei (a’, b’). Muscles outlined in (a, b) were magnified two-fold in panels (A’/B’). (c-h) Doomed muscles break apart into sarcolytes (arrow heads) which contain tau-GFP and, occasionally, condensed nuclei. (c, d) More laterally positioned DEOM2s undergo histolysis after completion of HE. (h) High magnification image of a DIOM1 located in the left hemi-segment of A2 on the second day of pupation surrounded by fluorescently labeled sarcolytes that persist for up to 3 days. (i, j) UAS-histone-mKO labeled cells driven by 24B-Gal4. (i) PCD of mono-nucleated, non-muscle cells (see Additional file 2: Figure S1) is associated with nuclear fragmentation following nuclear condensation. (j) In contrast, muscle fibers like the DEOM2 show condensation but not fragmentation of nuclei

DIOMs are not required for eclosion

As previously reported, DIOMs are eliminated in adult flies on the first day after eclosion [20]. This temporary nature suggested that these remodeled abdominal muscles may only be required during eclosion and become obsolete in adult flies. Unexpectedly, partial or total loss of DIOMs resulting from Cp1 or AMPKα RNAi, resulted in near-wildtype eclosion rates (Fig. 3). Therefore, the function of DIOMs in late metamorphosis and the purpose of their elaborate remodeling remain to be elucidated.

Fig. 3

DIOMs are not required for eclosion. (a) Eclosion rates were scored for the indicated number of samples n per genotype. Error bars indicate the 95 % confidence intervals of the proportions. (b-d) Images of late pupae (right column) and their cases after eclosion (left column) expressing the indicated RNAi constructs in muscles using the Mef2-Gal4 driver. Muscles were labelled with Mhc-tau-GFP (green). Shells were visualized by auto-fluorescence. (a) Arrow heads of a control pupa indicate DIOM1s. (b) Although overexpression of Cp1-shRNA induced elimination of all persistent muscles, the adult fly managed to eclose. An arrow head points at abdominal segment A2. (c) Similarly, the conversion of DIOMs to muscle spheroids (arrow head) and their subsequent elimination in response to AMPKα RNAi did affect the eclosion of the adult fly

Validation of RNAi experiments

All UAS-shRNA constructs used were generated by the Harvard Transgenic RNAi Project (TRiP), which applied bioinformatics methods in the selection of target sequences to avoid off-target effects [28]. The following lines of evidence support our notion that the shRNA constructs that caused cell death related phenotypes silenced the intended targets. Cell death by Cp1 silencing could be induced with two different shRNA constructs targeting different regions of the Cp1 mRNA (Table 1). Using a previously described fluorescent reporter gene expressing Cp1-mKO2 [30], we were able to show that both Cp1-shRNA were able to abolish muscular fluorescence in prepupae and pupae (Additional file 3: Figure S2). A previous study reported that the same AMPKα shRNA construct used in this study reduced AMPKα mRNA expression in embryos by 95 % when expressed using the maternal MTD-Gal4 driver [36]. A previous genome-wide muscle-specific RNAi screen showed that Rm62 and Atro shRNAs constructs from the Vienna Drosphila RNAi Center (VDRC), which were expressed using the same Mef2-Gal4 driver used in this study, induced flightlessness, an indicator of adult muscle defects [25]. The Rm62 and Atro RNAi constructs of the VDRC and TRiP collections target different regions of the corresponding mRNAs. In addition, consistent with our results, other studies have shown that Atro overexpression contributed to cell death in the nervous system [37] and was involved in embryonic myogenesis [38].

TOR and Rm62 protect persistent muscles from histolysis

Ecdysone receptor signaling activates cell death of DEOMs [22] and most other doomed larval tissues. However, little is known about the factors that protect persistent muscles from programmed cell death during metamorphosis. Our live imaging approach helped to identify three gene perturbations, Rm62 RNAi, Cp1 RNAi and TOR ^TED overexpression, that caused premature cell death of DIOMs, yet did not affect survival of newly formed adult muscles such as IFMs, heart or abdominal muscles (Fig. 4). To quantify premature cell death in persistent muscles, we scored rate and time of death (TOD) of the six DIOM1s in abdominal segments A2, A3 and A4 imaged by LSCM at 22 °C (Fig. 5). Cell death rate is defined as the proportion of DIOM1s that disintegrated during pupation, while TOD records the period during pupation, when cell morphology becomes distinctly different from control muscles, e.g. change from straight to curvy edges and loss of tubular morphology. (Addional file 4: Video 1). Despite their common terminal phenotypes, the gene perturbations differed in TOD and morphological changes during histolysis. In control animals, DEOM1s began to disintegrate prior to prepupal to pupal transition (PPT) and gave rise to fluorescently labeled sarcolytes, (Fig. 4a; Additional file 4: Video 1). The overexpression of dominant negative TOR (DN-TOR), also referred to as TOR^TED (toxic effector domain) comprising amino acids 1228–1947 of the 2470 residue long TOR kinase [33], caused complete elimination of DIOMs in the period from +5 to +20 h aHE (Fig. 4b). Unlike in controls, the DEOM1s persisted through PPT. At +4 h, 89.6 % of 48 DEOM1s (95 % CI: 77.3 %, 96.5 %) in A2 to A4 of 8 TOR ^TED pupae were still intact. At +5 h, both DEOMs and DIOMs started to change morphology and condense. Subsequently, both types of muscles disintegrated to give rise to sarcolytes that were noticeably larger than in controls (compare muscle fragments in Additional file 4: Video 1). TOR^TED has been proposed to act as a dominant-negative inhibitor of endogenous TOR-kinase that induces autophagy [39]. However, silencing of TOR by RNAi, which caused highly penetrant and significant atrophy of DIOMs, led to negligible cell destruction [30]. Cell death rate resulting from TOR-RNAi was 12.8 % with a mean TOD of +25.6 h compared to 100 % DIOM histolysis for TOR-TED with a mean TOD of +6.2 h (Fig. 5). The phenotypic differences suggest that TOR ^TED does not behave like a TOR loss-of-function allele in the context of DIOM development.

Fig. 4

Identification of genes required for the survival of persistent muscles. Dorsal views of abdominal segments A2 and A3 of four genotypes are shown in five time points after head eversion in the anterior-posterior orientation from left to right. Muscles were labelled with tau-GFP (green) and histone-mKO (red). For more details, see Additional file 4: Video 1.(a) In a pupa expressing a control shRNA, persistent muscles (DIOM1) near the midline (vertical arrows) survived to adulthood, while laterally located obsolete DEOM2s (*) were fragmented into fluorescent sarcolytes that persisted into late pupation. (b) Overexpression of the dominant negative (DN) TOR (TOR ^TED) initially prevented destruction of the DEOM1s (arrow heads, +3 h aHE), which occluded the DIOMs underneath (diagonal arrows). Subsequently (+12 h, +20 h), both DEOMs and DIOMs condensed and disintegrated. (c) Gene silencing of Rm62 led to histolysis of DIOMs at +20 h. (d) Silencing of Cp1 induced degeneration of DIOMs in mid pupation from +38 to +70 h. At +43 h, the muscles in A2 completely histolysed (dashed arrows), while the DIOM1 (arrow) in the right hemi-segment of A3 disintegrated almost 20 h later. Premature cell death of the three gene perturbations was restricted to larval persistent muscles. The DIOM1 in the left hemisegment of A3 survived (+75 h, arrow). As can be seen at +75 h, none of the gene perturbations caused discernible effects on the survival of newly formed adult muscle like dorsal abdominal muscles (double arrows) or the heart (heart shape). The scale bars in (d) represent 100 μm

Fig. 5

Selected gene perturbation cause cell death of DIOMs during different periods of pupation. (a) We scored proportion of DIOM1s (#cells) in abdominal segments A2 to A4 (6 per pupae) of the indicated number of samples (#pupae). Error bars indicate 95 % confidence intervals of proportions. (b) Box-and-whisker plots show the distribution of time of death (TOD). Outer grey boxes show first quartiles, medians and third quartiles. Whiskers show minimum and maximum values. (*) symbols represent outliers. Inner blue boxes indicate 95 % confidence intervals of the median. Circles indicate population means. The onset of muscle degeneration was assessed based on the earliest discernible alterations in cell morphology, e.g. loss of tubular shape. Cell death statistics were scored based on time-lapse images recorded by confocal microscopy at 22 °C

The silencing of the RNA helicase Rm62 induced premature histolysis during pupation in 60.5 % of DIOM1s scored with a mean TOD of +22.4 h (Fig. 4c, Fig. 5). Muscle destruction gave rise to tau-GFP labelled sarcolytes, which were similar in size to those observed in control (Fig. 4a) and considerably smaller than in TOR ^TED overexpressing pupae (Fig. 4b). As in control DEOM2s (Fig. 6a), chromatin condensed prior to muscle fragmentation (Fig. 6b). Rm62 silencing did not delay or inhibit cell death of DEOM1s and DEOM2s. The results suggest that TOR and Rm62 act cell-autonomously to protect persistent DIOMs from breakdown into sarcolytes.

Fig. 6

Different morphological changes during muscle cell death. a-c The top panels show muscle fibers labelled with tau-GFP (green) and outlined dotted lines. The bottom panels show the myonuclei labelled with histone-mKO (white). a A doomed DEOM2 expressing a control shRNA (see Fig. 3a, ‘*’) disintegrates into fluorescently labelled vesicular fragments or sarcolytes. Nuclei become brighter as they condense. b A DIOM1 expressing Rm62-shRNA expressing (Fig. 2c, arrow) undergoes premature histolysis similar to the PCD seen in the control DEOM2. c Cell death of Cp1-shRNA expressing muscles involves shrinking of cells and depletion of tau-GFP (compare +60 h and + 67 h). Subsequently, discrete nuclear signals at +67 h become fuzzy and weak at +72 h

The cathepsin-L homolog Cp1 promotes DIOM survival in mid-pupation

Silencing of Cp1, the gene encoding the ortholog of the lysosomal Cathepsin-L, led to decay of persistent muscles from +38 h onwards (mean TOD 55.3 ± 13.4 h) (Fig. 5b), around one day later than in the case of Rm62 RNAi (Fig. 4d). In contrast to TOR ^TED overexpression and Rm62 RNAi, removal of DIOMs was not associated with the fragmentation of muscles into GFP-labelled sarcolytes. Instead, we observed cell shrinkage and a gradual decay of the cytoplasmic tau-GFP fluorescence, indicating proteolysis or leakage of the fluorescent protein (Fig. 6c). Discrete nuclear histone-mKO labelling persisted slightly longer (3–6 h) than tau-GFP, before eventually changing to hazy fluorescence of lower brightness, supporting the notion that Cp1 RNAi, different from TOR ^TED overexpression and Rm62-RNAi, induced a type of cell death that included rapid protein degradation. In conclusion, Cp1 promotes survival of persistent muscles in mid-pupation. Compared to TOR and Rm62, Cp1 suppresses a different type of cell death that involves cell shrinkage and rapid protein degradation instead of fragmentation.

AMPKα RNAi leads to loss of tubular morphology and degeneration of DIOMs

AMPK is a master regulator of energy metabolism that promotes energy (ATP) generating processes and inhibits energy consuming activities such as cell growth and proliferation [40]. In muscles, AMPK is activated during exercise by increasing AMP levels to promote ATP production and inhibit protein synthesis [41]. In the context of DIOM remodeling, AMPK could promote atrophy through the inhibition of protein synthesis. In early pupation between +13 h to +20 h aHE, when control muscle decreased in size (Fig. 7a), AMPKα RNAi caused a loss of tubular morphology and decrease of tau-GFP fluorescence (Fig. 7b; Additional file 5: Video 2). LSCM was performed at 25 °C. From +25 h to +35 h, DIOMs rounded up and displayed an increase in brightness of tau-GFP fluorescence. We will refer to the DIOM derived structures as muscle spheroids. The conversion of DIOMs to muscle spheroids showed 100 % penetrance. The muscle spheroids floated within the pupal body, indicating a loss of attachment. Subsequently, muscle spheroids showed nuclear condensation (Fig. 7c) and disappeared before eclosion. Due to their mobility, spheroids could not be tracked continuously in the field of view (Additional file 5: Video 2). Out of 47 spheroids scored in three pupae at +40 h, we observed 7 nuclear condensation events between +35 h to +44 h. In late pupation at +70 h, two remaining spheroids corresponded to an estimated ablation rate of 96 %. As observed in 13 spheroids between +42 h to +66 h, the eliminations were accompanied by rapid depletions of tau-GFP within 30 min intervals, while histone-mKO labeled condensed nuclei persisted for an additional 1–3 h (Fig. 7d). Similar to Cp1 knockdowns, the destruction of AMPKα deficient muscle spheroids was not associated with the generation of sarcolytes. Despite the dramatic effects on DIOMs, other adult muscles did not display discernible defects and adult flies eclosed at wildtype rates.

Fig. 7

DIOMs detach and round up in response to AMPKα silencing. a Panels show the remodeling of DIOMs in abdominal segments A2 and A3. Remodeling involves reduction in diameter (atrophy) and rotation of the muscle fiber. b Silencing of AMPKα caused the loss of tubular morphology in DIOMs (arrow) between +10 h to +22 h. From +30 h onwards, DIOMs rounded up to give rise to floating muscle spheroids (+37 h, see Video 3), indicating a loss of attachment. c AMPKα ^shRNA muscle spheroids displayed condensation of histone-mKO tagged myonuclei (arrow in b, +37 h). d In late pupation after +50 h, muscle spheroids showed a sudden disappearance of tau-GFP, while condensed nuclei could still be observed for another 2 to 5 h (arrow in b, +55 h)

Atrophin silencing inhibits histolysis of doomed muscles

Atrophin is a nuclear receptor co-repressor that has been shown to promote neuro-degeneration [37]. Atro RNAi, similar to overexpression of DN-TOR and the N-terminal fragment of nuclear EAST [23], delayed the histolysis of DEOM1s (Fig. 8). At +5 h aHE, Atro ^shRNA DEOM1s were intact, while their control counterparts were already shattered. In 7 Atro ^shRNA pupae imaged by confocal microscopy, 79 % of DEOM1s in A2-A4 (n = 42 muscles, 95 % CI: 63.2 %, 89.7 %) survived until +5 h (Fig. 9a). DEOM1 survival showed an anterior-posterior gradient, with 100 %, 86 % and 50 % in A2, A3 and A4, respectively. Subsequent development of Atro ^shRNA DEOM1s differed between abdominal segments (Fig. 9b). While 80 % of muscles (we scored 40 muscles per segment in 20 pupae using a macro zoom microscope) in A2 remained intact until the end of pupation, most DEOM1s in the 3rd and all in the 4th and 5th segment shrank and broke apart into sarcolytes in the next 5 to 7 h (Fig. 8b; Additional file 6: Video 3). Therefore, Atro RNAi is the first known gene perturbation that is able to transform a doomed to a persistent muscle. We also observed rescue of DEOM1s in the first abdominal segment, which we were unable to accurately quantify due to limited visibility of muscles. DEOM1s protected from histolysis did not show nuclear condensation (Fig. 8d). Histolysis of DEOM2s did not show differences between control and Atro RNAi, indicating that silencing of Atro alone is not sufficient to delay or block the cell death of doomed muscles. Atro RNAi induced the transient formation of large vacuoles that were not seen in controls (Fig. 8b; +12 h). Furthermore, Atro silencing also caused a segment-specific loss of DIOM1s (Fig. 9c), which contrary to the histolysis in inhibition in DEOM1s rescue showed a posterior to anterior gradient. While 53 % of DIOM1s vanished in A5 and 15 % in A4, no cell death was observed in segments A2 and A3.

Fig. 8

Silencing of Atrophin inhibits muscle histolysis. a In controls during HE, DEOM1s (arrow, −2 h) disintegrated into sarcolytes (+5 h, arrows), revealing the DIOM1s (arrow head, +5 h) underneath. The more laterally located DEOM2s (*, +5 h) histolyzed later after HE. b Histolysis of Atro ^shRNA DEOM1s was delayed until early pupation (arrows, +5 h), resulting in intact muscles (arrows) at +5 h. Subsequently, DEOM1s in A3-A5 were destroyed. The DEOM1s in A2 persisted into adulthood, resulting in crosswise overlapping muscles at +55 h. Atro silencing led to transient formation of vacuoles (v) at +12 h. c Histolysis of control DEOM1s (white contours, compare to A, +5 h) was accompanied by chromatin (histone-mKO) condensation. Compare to myonuclei in DIOM1 (grey contour). d Delayed DEOM1 histolysis in A3 was accompanied by cell shrinkage and chromatin condensation, which did not occur in the corresponding muscle in A2. Time-lapse datasets were recorded at 25 °C

Fig. 9

Atrophin RNAi inhibits histolysis of DEOMs. a Survival rates of doomed muscles (DEOM1s) in early pupation (+5h aHE) were scored in LSCM images of abdominal segments A2-A4. While all DEOM1s in 14 control animals had disintegrated, the majority of AtroshRNA and DN-TOR expressing muscles were still intact in 7 and 8 pupae examined, respectively. b DEOM1s surviving to late pupation (4 days aHE) were scored for abdominal segments A2-A5 in images acquired by macrozoom microscopy. c Similarly, we determined cell death rates of persistent muscles (DIOM1s) for the same 19 control and 20 Atro shRNA expressing pupae. The numbers of muscles scored per segment are indicated by n in brackets. Errors bars indicate 95 % confidence intervals of the proportions

Discussion

Although larval body wall muscles are structurally and physiologically similar, they respond differently to changing environmental conditions during metamorphosis. Our method provided new insights into the genes that determine if, when and how muscles execute programmed self-destruction (Fig. 10). Due to its ability to characterize dynamic and transient phenotypes, time-lapse image analysis allowed us to differentiate gene perturbations based on four main criteria; (1) whether they promoted or inhibited cell death, (2) which muscles were affected, (3) the developmental period of phenotypic abnormalities and (4) the morphological transformations during muscle destruction.

Fig. 10

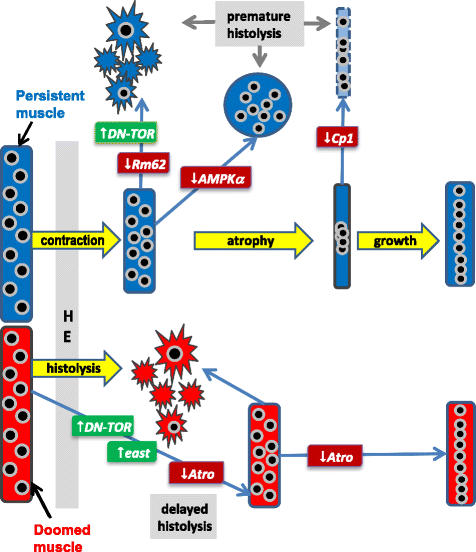

Gene perturbations that affect cell death and survival of larval abdominal muscles during metamorphosis. Larval persistent muscles undergo remodeling to adult temporary muscles, which involves atrophy, nuclear migration and hypertrophy. We identified gene perturbations that specifically cause premature cell death of persistent muscles without affecting the survival of newly formed adult muscles. TOR and Rm62 protect DIOMs from fragmentation into sarcolytes in early pupation. In mid-pupation, Cp1 prevents a different type of cell death that involves leakage and/or lysis of fluorescent proteins. Silencing of AMPKα induces detachment, loss of tubular morphology and ablation of muscle spheroids. Doomed muscles undergo histolysis during and right after HE, which can be delayed by overexpression of dominant negative (DN) TOR, a fragment of the east gene and Atro RNAi. In addition, Atro RNAi is the only gene perturbation so far that promotes survival of a subset of DEOMs until adulthood

In early pupation, TOR ^TED overexpression and Rm62-RNAi induced the breakdown of DIOMs into sarcolytes. The phenotypic similarity to normal histolysis of DEOMs suggests that TOR and Rm62 cell autonomously inhibit cell death of persistent muscles. Evidence in the literature indicates that mTOR can either promote or inhibit apoptosis depending on the biological context [39], supporting the idea that TOR may protect remodeled muscles from histolysis. However, since TOR ^TED overexpression may also create unphysiological conditions, we cannot rule out the possibility that the phenotype is an artefact. Circumstantial evidence links the RNA helicase Rm62 to TOR signaling since Rm62 protein was detected in the same complex as the protein Poly, which is a Drosophila homolog of a transcription elongation factor Elp6 and acts as a positive regulator of InR-TOR signaling [40]. Time-lapse analysis uncovered phenotypic differences between the two gene perturbations. Compared to TOR ^TED, Rm62-RNAi induced histolysis occurred 15 h later and did not delay histolysis of DEOMs. In the context of abdominal muscles, TOR ^TED did not exactly behave like a dominant negative version of the endogenous TOR protein since TOR-RNAi mainly affected cell size and had negligible effects on cell survival [29]. We can only speculate that the regulation of cell survival and cell growth are mediated by different protein complexes.

Cp1, the fly ortholog of lysosomal Cathepsin-L, has been proposed to mediate autophagic cell death since its gene expression is upregulated during salivary gland cell death [42]. Contrary to this prediction, our results showed that Cp1 acts as a suppressor of cell death in DIOMs. In contrast to the phenotypes caused by TOR^TED overexpression and Rm62 RNAi, cell death occurred in a later stage of metamorphosis and was not associated with the formation of sarcolytes. Prior to DIOM disappearance, fluorescence of the tau-GFP and histone-mKO reporter decreased and became diffuse, suggesting that Cp1-RNAi induced protein and chromatin degradation inside muscles rather than their fragmentation into sarcolytes. A plausible explanation for the loss-of-function phenotype is that Cp1 may act to break down PCD-promoting proteins that start to accumulate in persistent muscles towards late metamorphosis, thus ensuring that DIOMs only degenerate after eclosion.

Previous studies have shown that autophagy promoted cell death in tissues like the midgut in Drosophila metamorphosis [21]. Since TOR^TED is a potent inducer of autophagy in the fat body [39], activation of autophagy may trigger cell death of wildtype DEOMs and TOR ^TED overexpressing DIOMs. In a parallel study, we found that RNAi of 5 autophagy related genes (Atg5, Atg9, Atg12, Atg17, and Atg18) caused inhibition of atrophy during the remodeling of DIOMs [29]. We examined 25 time-lapse datasets of pupae expressing shRNAs against Atg9 (7) and Atg5, Atg12 and Atg18 (6 each). However, we unable to find evidence that silencing of these genes inhibited or blocked histolysis of DEOMs, as we demonstrated for Atro-RNAi and TOR^TED overexpression. Hence, in agreement with a previous study [22], autophagy does not appear to play a role in mediating cell death of larval muscles.

Previous studies have shown that ecdysone receptor signaling cell-autonomously triggers apoptosis in DEOMs [22]. Our results corroborate previous reports in rats and moths, which concluded that PCD in muscles did not display a variety of morphological features observed in classical apoptosis, such as phagocytosis or DNA fragmentation [10, 16]. Although we observed chromatin condensation prior to and during histolysis, we did not find evidence for nuclear fragmentation that can be observed in mono-nuclear non- muscle cells. In addition, the intensity and localization pattern of histone-mKO in sarcolytes showed remarkable stability, arguing against strong proteolytic activities which are commonly associated with apoptosis. Similarly, non-nuclear fusion proteins like tau-GFP, Cp1-mKO2 and Pros35-mOrange2 provided stable fluorescent labeling of sarcolytes. Our results are not necessarily in conflict with studies in Manduca which showed that PCD in ISMs involved the increased activation of the autophagy-lysosomal and ubiquitin-proteasome pathways [14]. A tight control over proteolysis and, probably, lipolysis may ensure that sarcolytes continue to function as amino acid reservoirs that help to feed the developing fly during pupation.

So far, little is known about the genes that mediate DEOM PCD downstream of the ecdysone receptor. Our results suggest that Atrophin may play a role in promoting muscle degeneration. Consistent with previous reports that Atro overexpression leads to neuronal cell death [37, 43], our data show that Atro knockdown can inhibit histolysis of doomed larval muscles. In both neurons and muscles, Atro appears to show genetic interactions with TOR signaling. While TOR ^TED overexpression enhances neurodegeneration elicited by Atro gain-of-function [43], both Atro-RNAi and TOR ^TED overexpression delay histolysis of DEOM1s. The response of DEOMs to Atro silencing was cell-specific. Histolysis of all DEOM1s was delayed, while destruction of DEOM2s occurred at the normal time. Moreover, a subset of DEOM1s, particularly in the anterior abdominal segments was resistant to histolysis and survived until the end of metamorphosis. The reason for this specificity remains to be elucidated. Since Atro protein acts as a transcriptional co-repressor that recruits histone deacetylases [44], it may repress the transcription of pro-survival genes in doomed muscles. Given that loss of Atro is not sufficient to block PCD in all DEOMs, other redundant transcriptional regulators may repress yet to be discovered target genes.

Conclusions

Live microscopy of Drosophila metamorphosis is a powerful tool to study the processes and genes that promote and prevent cell death in muscles. Candidates of protective genes include Rm62, Cp1, TOR and AMPKα, all of which were discovered in a pilot screen involving 98 preselected unique genes. Time-lapse image analysis provides detailed insights into muscle degeneration that would be difficult to obtain from the study of fixed tissues. Cellular parameters like chromatin condensation, size, shape and fragmentation can be continuously monitored. For different genotypes, we can compare the time of death of different populations of muscles. Using a pilot screen, we identified 5 gene perturbations that could delay or block cell death of doomed muscles, or induce premature histolysis of persistent muscles. Atrophin is so far the only gene, whose silencing can rescue a subset of DEOMs until the end of metamorphosis. Remodeled muscles undergo atrophy. Interestingly, none of the perturbations that induced cell death of remodeled muscles showed discernible effects on the survival of newly formed adult muscles, suggesting that this approach may help find genes that protect muscles undergoing atrophy from PCD. Unbiased genome-wide reverse genetic screens in the future promise to identify more genes involved in myogenic PCD during insect metamorphosis, some of which may be evolutionarily conserved and relevant for human muscle wasting.
